Custom object display (repr)

The default way of displaying objects is as follows: ClassName(param1=..., param2=..., param3=..., ...). This printout / repr can b overridden with the use of tkclasswiz.convert.ObjectInfo.register_repr() method.

classmethod ObjectInfo.register_repr(class_: type, repr: Callable[[ObjectInfo], str], inherited: bool = False)

Registers a custom __repr__ (string representation of object) function. The function must as a single parameter accept the ObjectInfo instance being represented as a string.

Parameters:

• class (type) – The class for which this custom repr is being register.

• repr (Callable[[ObjectInfo], str]) – The function that will provide custom __repr__. As a parameter it accepts the ObjectInfo object. It returns a str (string).

• inherited (bool) – Boolean flag. Setting it to True will register repr for inherited members as well. Defaults to False.

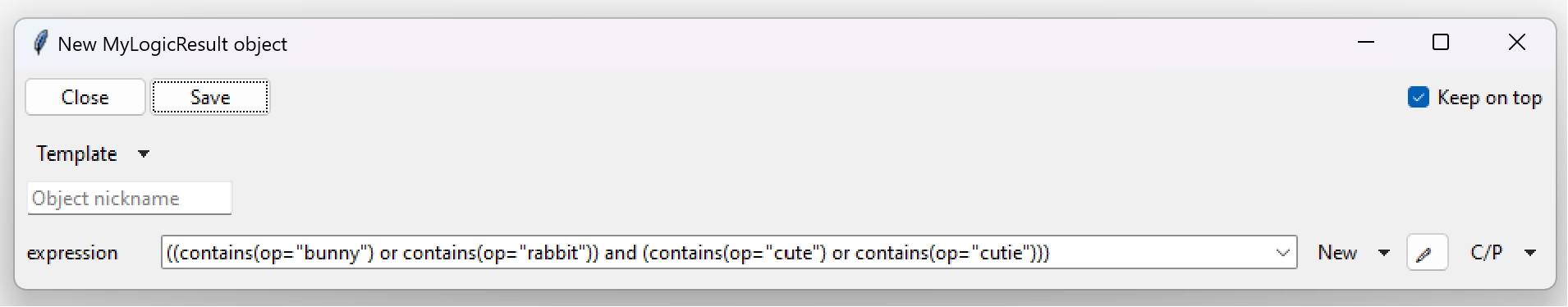

For example, let’s say I want to define some logical operators and want them to be displayed differently. The example shows how a custom repr display can be made. It may look a bit much, but the only thing that matters is the emphasized register_repr() method call. Inside the call, a lambda function is provided. The lambda accepts the ObjectInfo object and outputs a string. That string is made up of the name of a logical operator and the operants in the following format: <op1> <operator name> <op2> <operator name> <op3> .... If the operator’s name is or_op, it will be displayed as <op1> or <op2> or <op3> .... If the operator’s name is and_op, it will be displayed as <op1> and <op2> and <op3> ....

from typing import List
from abc import ABC, abstractmethod

import tkinter as tk
import tkinter.ttk as ttk
import tkclasswiz as wiz

class base_op(ABC):
    @abstractmethod
    def evaluate(self):
        pass

class bool_op(base_op):
    def __init__(self, operants: List["base_op"]) -> None:
        self.operants = operants

class and_op(bool_op):
    def evaluate(self):
        return all(op.evaluate() for op in self.operants)

class or_op(bool_op):
    def evaluate(self):
        return any(op.evaluate() for op in self.operants)

class contains(base_op):
    def __init__(self, op: str) -> None:
        pass

    def evaluate(self):
        # For demonstration purposes. Otherwise, we would usually check if op is contained within string
        return True

class MyLogicResult:
    def __init__(self, expression: base_op) -> None:
        self.expression = expression


wiz.ObjectInfo.register_repr(
    bool_op,
    lambda oi: "(" +
            f' {oi.class_.__name__.removesuffix("_op")} '
            .join(map(repr, oi.data["operants"])) +
            ")",
    True
)

# Tkinter main window
root = tk.Tk("Test")

# Modified tkinter Combobox that will store actual objects instead of strings
combo = wiz.ComboBoxObjects(root)
combo.pack(fill=tk.X, padx=5)

def define(old = None):
    """
    Function for opening a window either in new definition mode (old = None) or
    edit mode (old != None)
    """
    assert old is None or isinstance(old, wiz.ObjectInfo)
    window = wiz.ObjectEditWindow()
    window.open_object_edit_frame(MyLogicResult, combo)

# Main GUI structure
ttk.Button(text="Open", command=define).pack()
root.mainloop()
